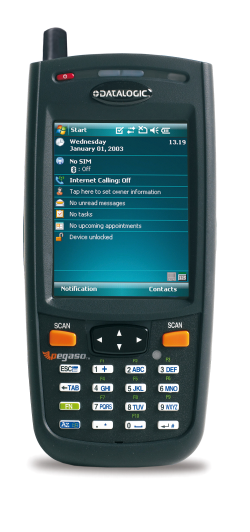

TERMINALES Volver a terminales Móviles por Radiofrecuencia Terminales móviles por radiofrecuencia Pegaso Terminal portátil de RF Especificaciones DIMENSIONS 6.9 x 3.2 x 1.9 in (175 x 81 x 48 mm) WEIGHT 16.9 oz (479 g) with 3300mAh battery DISPLAY 3.6 in (9.1 cm) full VGA 480 X 640 with option to operate in ¼ VGA mode, 64k color. Transfl ective Polysilicon TFT LCD with LED Backlight OPERATING TEMPERATURE* 14° to 122° F (-10° to 50° C) STORAGE TEMPERATURE* -22° to 158° F (-30° to 70° C) DROP RESISTANCE Multiple 5.0 ft (1.5 m) drops to concrete PROTECTION CLASS IEC529 rating IP64DW *Charging accessories operate within 32° to 104° F (0° to 40° C) SYSTEM OPERATING SYSTEM Microsoft Windows CE 5.0 MICROPROCESSOR Intel XScale PXA270, 520 Mhz SYSTEM RAM MEMORY 64MB or 128MB SYSTEM FLASH MEMORY 128MB VOICE OPTIONS VoIP, Walkie Talkie (sold separately) MAIN BATTERY Rechargeable Li-Ion battery pack; 3300 mAh @ 3.7v Nominal (RF); 2200 mAh (Batch) BACKUP BATTERY Rechargeable Li-Ion, 140 mAh COMMUNICATIONS INTERFACES RS232, USB OTG with 500 mA power output, RS232 LOCAL AREA NETWORK (LAN) Wi-Fi IEEE 802.11b/g, USB OTG with 500 mA power output, RS232 Cisco CCX v3 certifi ed (optional) Frequency range: Country dependent, typically 2.4-2.5 GH Integrated module PERSONAL AREA NETWORK (PAN) IEEE 802.15 Bluetooth® class 2, v1.2 (optional) Integrated module AUDIO Stereo (headset), 2.5 mm jack READING OPTIONS LASER CHARACTERISTICS SCANNING RATE 104 ± 12 scan/sec MINIMUM RESOLUTION 0.10 mm / 4 mils DEPTH OF FIELD 5 to 90 cm (2 to 35 in), depending on bar code density BAR CODES Code 32, Code 39, Code 93, Codabar, Code 128, EAN/JAN 8, EAN/JAN 13, EAN 128, UPC A, UPC E, Interleaved 2/5, Matrix 2/5, MSI, Standard 2/5, Code 39 Full ASCII, EAN/UPC 2 digit ext., EAN/UPC 5 digit ext., RSS-14/RSS Limited /RSS Expanded MAGNETIC STRIPE READER Quick Attach, Tracks 1,2,3 BATTERY EN60950, UL60950-1, IATA/UN 3090, UL2054 ELECTRICAL EN60950, UL60950, CSA 60950 EMISSIONS FCC Part 15-B, CISPR 22 RADIO FCC Part 15-C, R&TTE, IC, IDA LÁSER CLASSIFICATION VLD - Class 2/II EN 60825-1/CDRH RESTRICTION OF HAZARDOUS SUBSTANCES Complies to EU RoHS (C)TSF Informática Industrial |
